Smart Air Purifying Air Quality Monitor
- PM2.5/VOC/Ventilation/Barometric Sensor for your Air Purifier

The World Health Organization believes that 29% of lung cancer, 24% of stroke, 25% of heart disease and 43% of lung disease deaths are due to air pollution. 92% of the world’s population cannot breathe safe air, and 7 million people die directly or indirectly from air pollution each year.

Long-term inhalation of polluted air will further damage our metabolism, resulting in obesity, diabetes and high blood pressure. Pregnant women breathing polluted air may cause premature birth or miscarriage, or give birth to children with hyperactivity and autism. Air pollution also often causes asthma, allergic rhinitis, bronchitis, pneumonia, and may even lead to skin allergies, arteriosclerosis, myocardial infarction, stroke, dementia, as well as cancers such as lung cancer, breast cancer, and liver cancer.People who care about the health of themselves and their relatives and friends should know the air pollution exposure data of their environment at anytime and anywhere. Data tells the truth. The essence of air pollution detection is preventive medicine.

Nowadays, leading brands of home appliances pay attentions to the impact of air pollution on the health of users, and have launched PM2.5 air quality monitors to actively monitor the air pollution status.

The PM2.5 & VOC Sensors are highly important for the Air Purifiers, Air Conditioners and HVAC Ventilation Systems to detect air quality and respond intelligently. Although some air purifiers have built-in air quality sensors, but not yet in remote control due to PM2.5 sensor size and weight constraint.

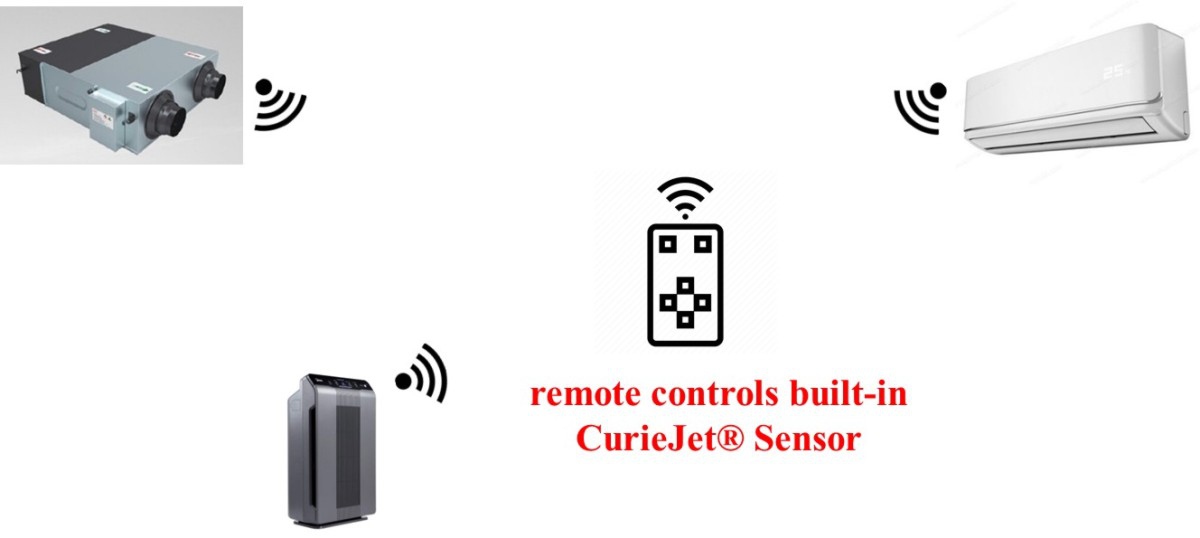

Why REMOTE CONTROL?

What users care about the air quality are the air inhaled in the nose, not the air beside air purifiers that still keep some distance and the air quality are much different from users. Now, due to the world’s smallest and slimmest size of CurieJet®P750 PM2.5 & VOC Sensor, you can design air quality monitor in remote control instead inside the air purifier.

Also, the remote control air quality monitor can work for all multiple air purifiers, air conditioners and HVAC ventilation systems that brings huge benefits on cost-saving and easy installation. Furthermore, while air sensor modules are end of life, the parts are easily repaired or new purchased and don’t need to repair the whole air purifier & HVAC machines.

Air Monitors as Consumables

CurieJet® P750, with extremely miniature size, can be designed as separable USB-powered Dongle consumable parts on air purifiers or HVAC machines. While USB-powered air monitors are end of life, the consumable parts are easily swapped by users and don’t need to repair the whole machines.

Core Technology

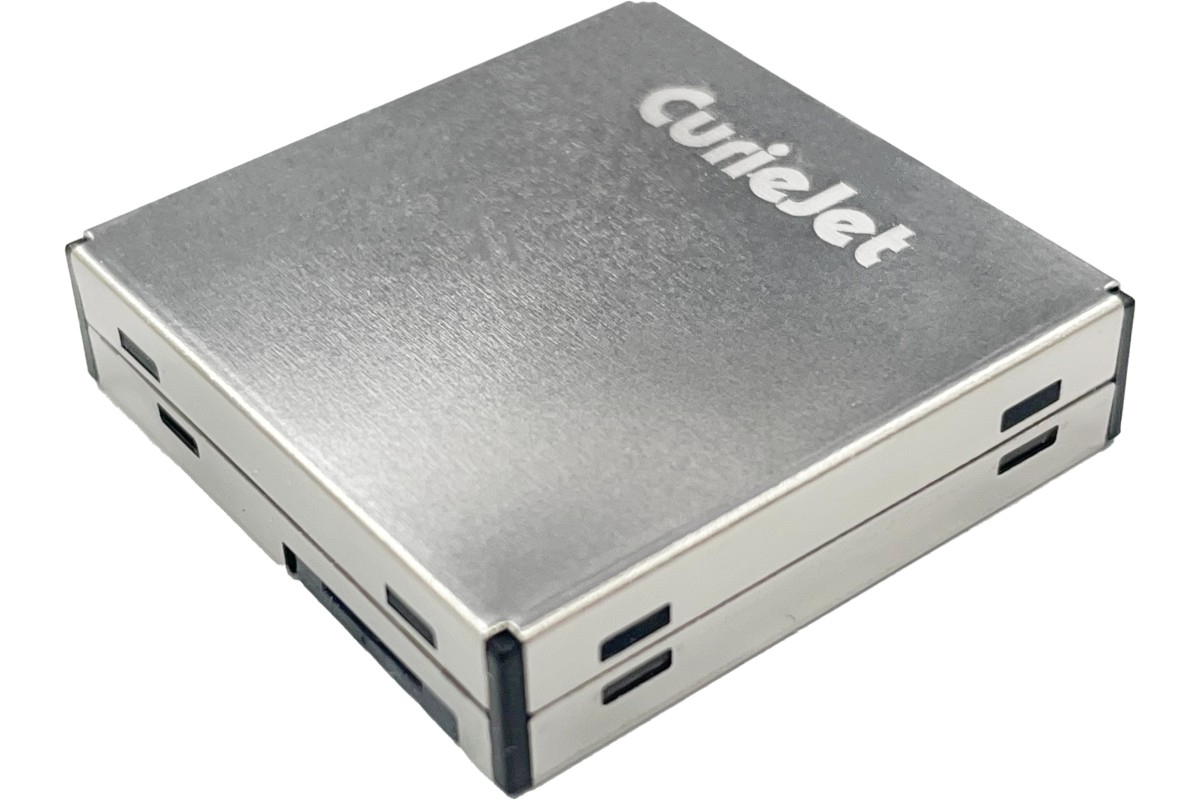

P750 Particle & Gas Sensor, with size only 29x 29x 4.9 mm, is the world’s smallest all-in-one air sensor with only 1/16 volume compared with others. P750 uses laser light with Mie scattering theory to measure PM2.5, PM10 and even PM1.0. P750 also integrates BME680 Environmental Sensor that can detect VOC gas, show the ventilation status, sense barometric pressure for weather glass or altitude difference. It also detects ethanol and may be developed as alcohol breath tester, or drunk driving prevention alarm system.

DataSheets: Download

Design Guides

To design your remote control air quality monitor, please refer information on CurieJet® P750: Product information. You may design in Bluetooth or IR interface to remote control your air purifiers, air conditioners and HVAC ventilation systems. Except for our world’s smallest and slimmest size of CurieJet® P750 PM2.5/PM1.0/VOC/Ventilation/Barometric Sensor, you may also design in temperature, humidity and even G-sensor etc. Depends on your application, you may consider the power, display and touch and even APP for the industrial design. Even to design AIOT cloud functions for indoor smart home or outdoor applications, you may consider the power, display and touch and even APP for the industrial design.

Application

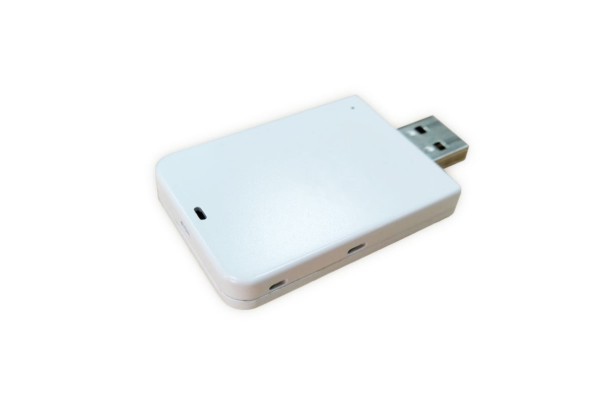

(Product 1) USB-powered Air Quality Monitor

CurieJet® Sensors, with extremely miniature size, can be designed as separable USB-powered Dongle consumable parts on air purifiers or HVAC machines. While USB-powered air monitors are end of life, the consumable parts are easily swapped by users and don’t need to repair the whole machines.

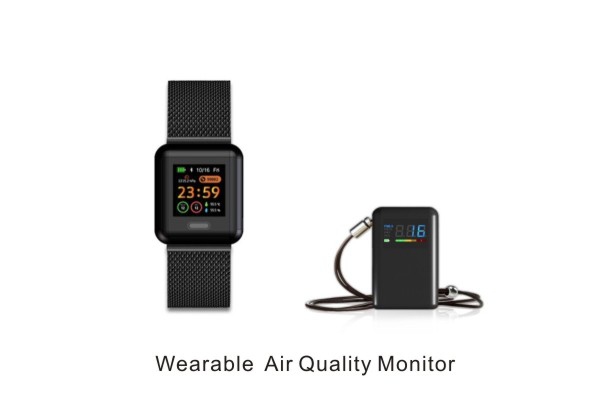

(Product 2) Wearable Air Quality Monitor

CurieJet® Sensors, with small and slim size, also very low power consumption, developers are flexible to design from fixed, desktop, portable to wearable air quality monitor and various Indoor/Outdoor AIOT air detector devices.

About us

CurieJet® is the marketing brand of Microjet Technology’s Piezoelectric Micro Fluidics products. We have applied for more than 1,600 patents worldwide on micropumps & related products. Most are invention patents. CurieJet website
