In-Car Air Pollution Control
- CurieJet® ADAS Air Monitor Sensors help Safer Driving

In-Car Air Pollution Problems

Due to the rapidly changing environment outside/in the vehicle while driving, and due to the limitation of the interior space, the in-car air pollution control has always been a great challenge. People don’t know how the cabin air filters in a vehicle can really help remove harmful pollutants. Also lack of the integration with car air purifiers. Above problems arise from lacking of highly integrated and sensitive environmental sensors to real-time monitor the air quality in the car.

Air pollutions are mainly in Particulate matters(PM)and Gaseous pollutants forms. Particulate matters(PM)air pollution may be measured in PM2.5, PM10 and even PM1.0 level fine particulate matters and dust. Gaseous pollutants air pollution may be measured in VOCs(Volatile Organic Compounds) volatile harmful gas, formaldehyde (HCHO/ CH2O) or other cancer-causing material.

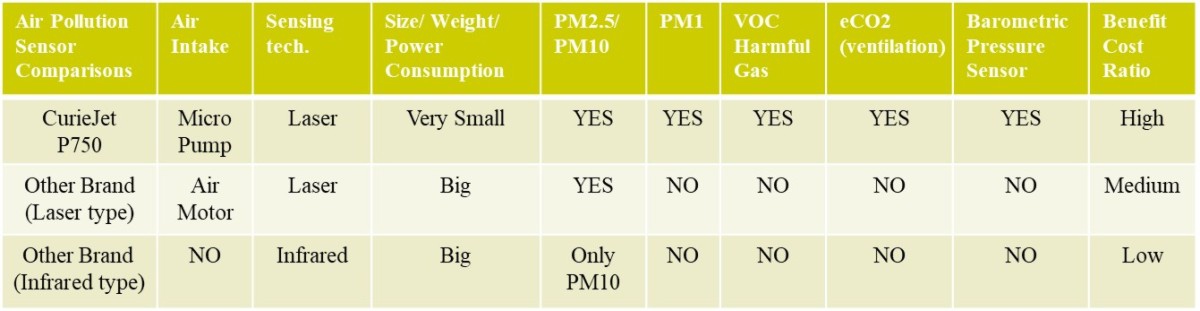

Why Tiny & Thin Automotive Air Quality Sensors?

Now, thanks to the world’s smallest and thinnest CurieJet® P750 air quality sensor, Automotive electronics industry can embed it in smart cockpits, car displays, dashboards, GPS satellite navigation systems, tablet computers, and even speed warning devices and HUD head-up displays, Car audio and video host, In-Vehicle Infotainment, Advanced Driver Assistance System (ADAS), Electronic Control Unit(ECU) , and even enable the car air conditioning filter or car air purifier. When the external circulation mode of the car air conditioner is turned on to improve the ventilation, the CurieJet® P750 can verify whether the car air-conditioning filter need to be updated, or need to install a car air purifier to achieve the extremely clean air quality.

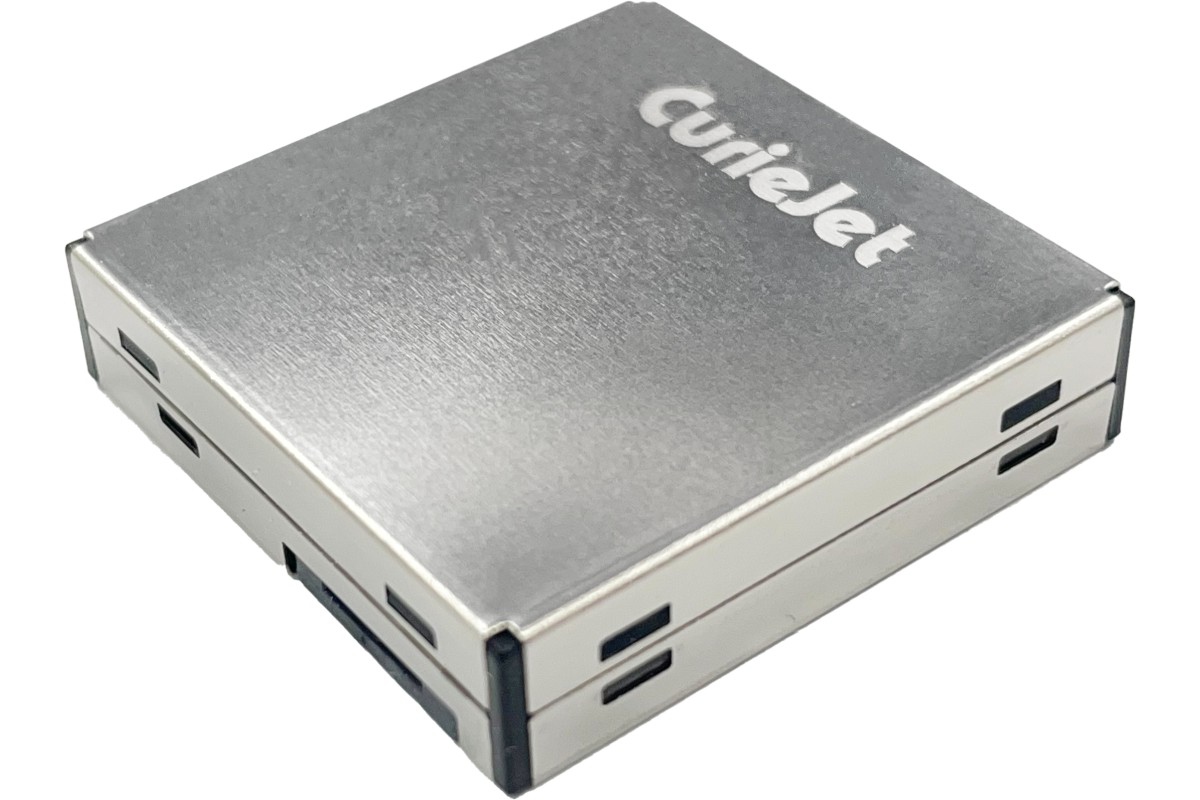

CurieJet® P750 Particle, VOC and Barometer Sensors

P750 Particle & Gas Sensor, with size only 29x 29x 4.9 mm, is the world’s smallest all-in-one air sensor with only 1/16 volume compared with others. P750 uses laser light with Mie scattering theory to measure PM2.5, PM10 and even PM1.0. P750 also integrates BME680 Environmental Sensor that can detect VOC gas, show the ventilation status, sense barometric pressure for weather glass or altitude difference. It also detects ethanol and may be developed as alcohol breath tester, or drunk driving prevention alarm system.

https://www.curiejet.com/en/product/particle-voc-index-barometric-pressure-sensor/environmental-sensor-modules

P750 DataSheets: Download

CurieJet® P750 drives air filtration to avoid air pollution risks and help development of the ADAS industry, digital Tachograph driving recorder, fatigue detection system (anti-drowsiness system), alcohol lock, etc.

Real-time In-Car Air Pollution Monitoring

Particulate matters(PM) air pollution may be measured in PM2.5, PM10 and even PM1.0 level fine particulate matters and dust. The newly ISO 16890 Global Air Filtration Standard classifications are based on where particles are deposited in the human lung. PM1 are extremely fine particles and a major subset of PM2.5 that are likely to reach deeper into the body than PM2.5 making them even more harmful as they can reach other organs through the bloodstream. There are more evidences show that COVID-19 coronavirus also spreads through aerosols. PM1 also possible cause for poor visibility. Now, it becomes mandatory for air quality monitors and air purifiers adopt PM1 as measuring parameters, not only PM2.5 & PM10.
( PM1 matters more than PM2.5 )

CurieJet® P750 can detect Volatile Organic Compounds (VOC) from paints (such as formaldehyde), lacquers, paint strippers, cleaning supplies, furnishings, office equipment, glues, adhesives and alcohol. The IAQ (Index for Air Quality)index, valued from 0 to 500, can be deemed as VOC Index to reflect different gaseous pollutants risks of TVOC Level.

Upon request, breath-VOC (b-VOC) which represents the most important compounds in an exhaled breath of humans, can also be supplied as VOC value in ppm.

View PDF Datasheets

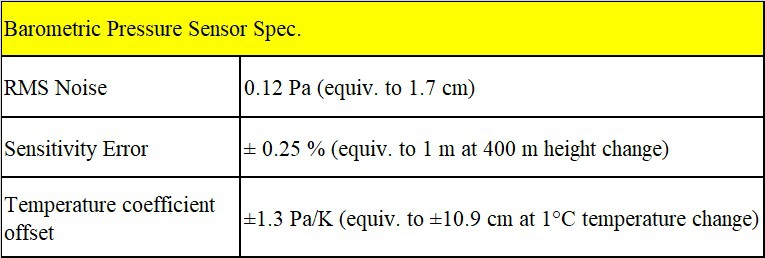

Detect changes in driving height

The CurieJet® P750 has a built-in air pressure sensor. The driving system can also calculate the altitude difference, which can easily integrate and provide information on the slope, climbing height, uphill height and downhill height of the vehicle. The air pressure sensor information can correct the GPS navigation device to make 3D positioning more accurate. For example, it can correct the error caused by the GPS in the viaduct because it cannot determine whether the vehicle is on the bridge or under the bridge.

Poor ventilation warns of fatigue driving

CurieJet® P750 can also customize the vehicle interior ventilation index with artificial intelligence algorithms, and provide a warning if the vehicle interior ventilation may be poor to reduce the risk of fatigue driving.

The major path of viral infection is by human’s exhaled breath. To reduce the risk of COVID-19 infection, it is important to keep the indoor concentration of exhaled breath as low as possible.
CurieJet® P750 which integrates BME680 sensor detects exhaled human breath and outputs an index of air quality(IAQ). The IAQ (Index for Air Quality)index shows the ventilation status. When IAQ is smaller than 100, there is no ventilation needed.When IAQ is 100-200, it may consider ventilation. When IAQ > 200, it shall ventilate.
https://www.bosch-sensortec.com/q-templatereplacement/newsdetail/how-sensing-solutions-help-to-fight-against-covid-2.html

Upon request, eCO2 (CO2 equivalents) that are derived from the average correlation between VOCs and CO2 in human’s exhaled breath, can also be supplied as another ventilation indicator. Please note that eCO2 (CO2 equivalents) in ppm is not CO2 value.

Drunk Driving Prevention

CurieJet® P750, due to built-in BME680 Sensor that detect ethanol, may also be developed as alcohol breath tester, or drunk driving prevention alarm system. Even, it may be applied for The Driver Alcohol Detection System for Safety (DADSS) Program that can passively detect when a driver is under the influence of alcohol and prevent a vehicle from operating.

PM1 Visibility Sensing helps Safer Driving

Air pollution from cars affects everyone. PM1 are extremely fine particles and a major subset of PM2.5 that are likely to reach deeper into the body than PM2.5 making them even more harmful as they can reach other organs through the bloodstream. PM1 also cause for poor visibility. Visibility sensing will help safer driving. That is why we should monitor PM1, the least visible particle in air.

A New Era of In-Car Smart Air Sensing

The development of automotive sensors has created a new era in the automotive industry. Sensor fusion is the key to self-driving cars. Whether it is traditional fuel vehicles, electric vehicles, or future self-driving cars, CurieJet® leading as the world’s smallest and thinnest air quality sensor, assist car manufacturers and the Internet of Vehicles industry to establish an in-car air pollution prevention platform for ultimate clean air quality.

Application

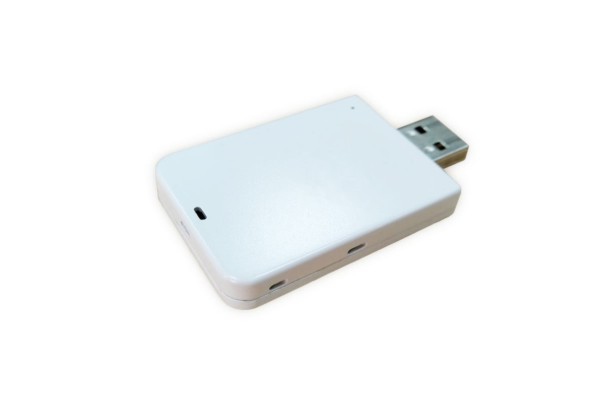

(Product 1) USB-powered Air Quality Monitor

CurieJet® Sensors, with extremely miniature size, can be designed as separable USB-powered Dongle consumable parts on air purifiers or HVAC machines. While USB-powered air monitors are end of life, the consumable parts are easily swapped by users and don’t need to repair the whole machines.

(Product 2) Wearable Air Quality Monitor

CurieJet® Sensors, with small and slim size, also very low power consumption, developers are flexible to design from fixed, desktop, portable to wearable air quality monitor and various Indoor/Outdoor AIOT air detector devices.
