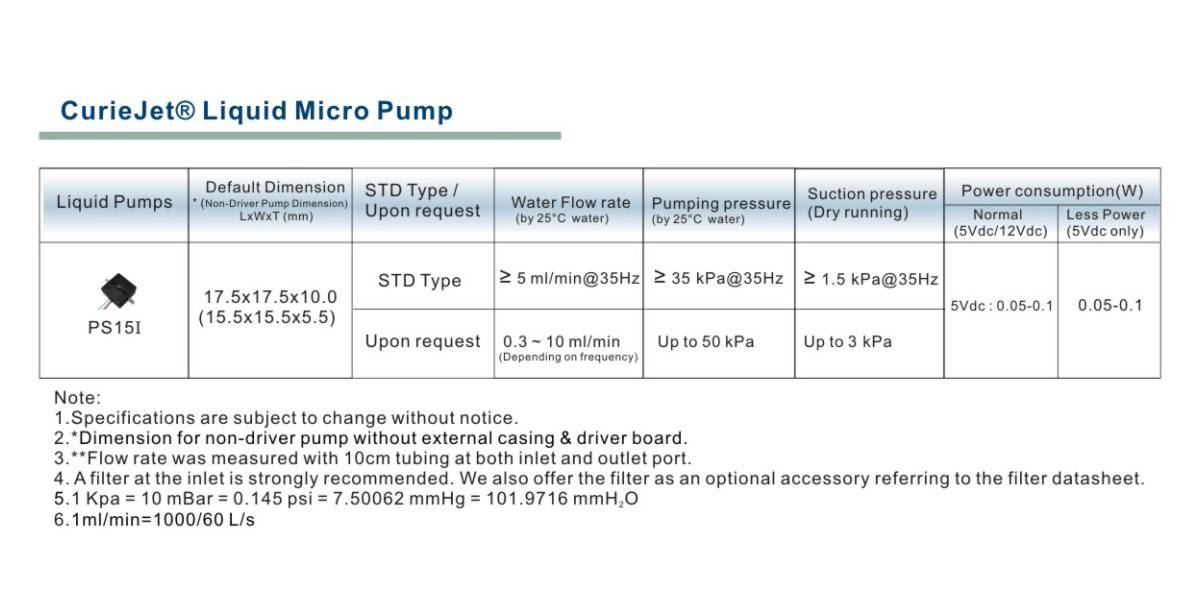

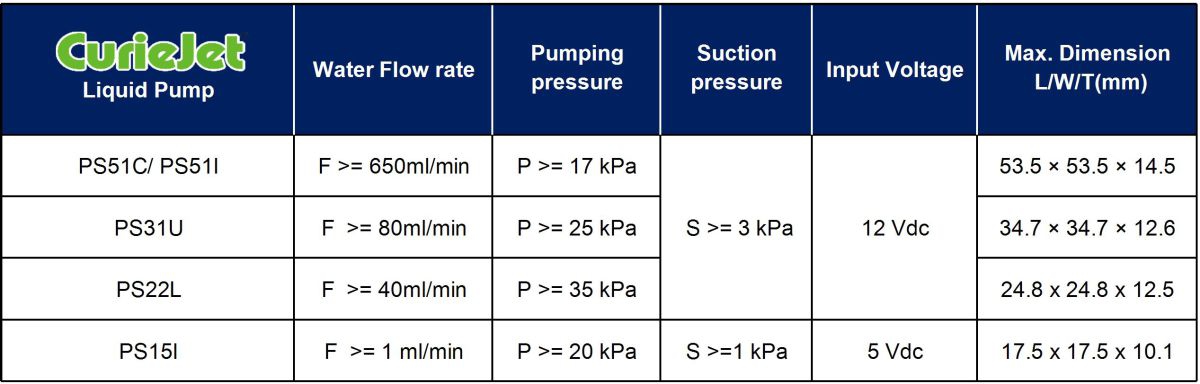

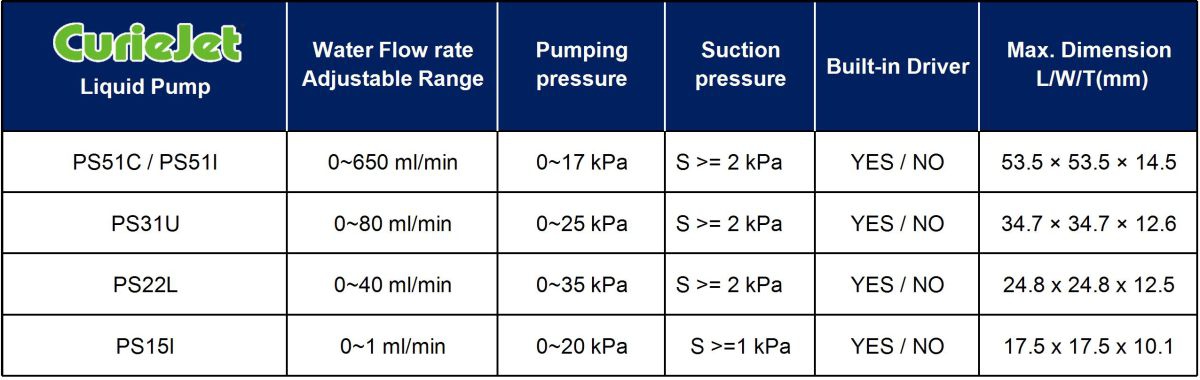

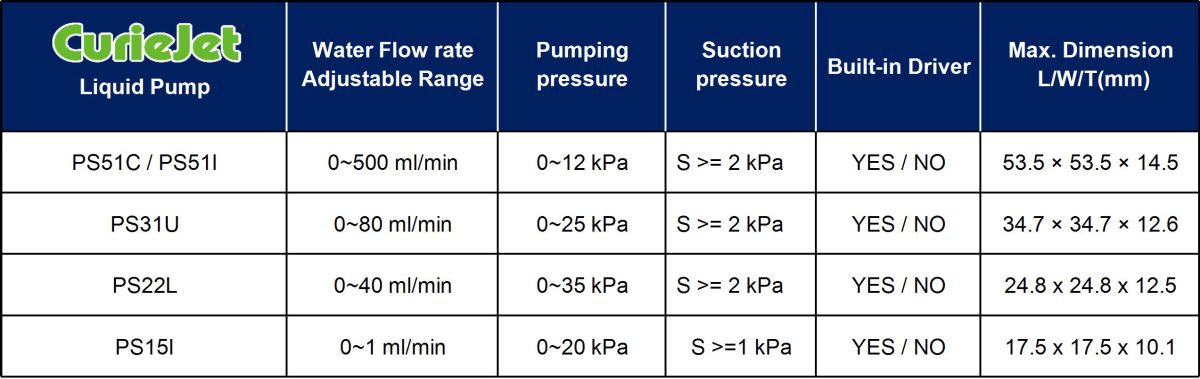

Piezo-electric Liquid Micropump

DataSheets: Download

CurieJet® Piezo-electric Micropump is a kind of Micro Diaphragm/Membrane Pump developed by MicroJet Technology. By leveraging the advantage of our Piezolelectric Micro Fludics Technology, CurieJet® offers liquid micropumps and gas micropumps. Its striking characteristic is the competitive flow performance under its small dimensions with the built-in driving circuit. The features including low power consumption, self-priming, bubble tolerance and dry running or gas pumping.

CurieJet® Micropump Application
  • High Precision Piezo-electric Water Slim Miniature MicroPump ( Inkjet Printer Ink Delivery & Purge Pump)
  • Lightweight Tiny Micro Pump for Steam Iron /Hair Straightener water spraying, Auto Sanitary Soap
  • Dispensing Water Dispensor Small Pump for Coffee Machine /Tea Pot /Hydrogen Water /Quick Cup Kettle /Beer filling (High-Precision Infusion)
  • Ultra Small Silent Micro Pump for Nasal Wash / Insulin Dosing
  • Syringe Infustion (Medical Suction Tiny micropump) Alcohol/Oil/Lubricant High Viscosity Chemical Liquid
  • Micro Dosing Fireplace Hydraulic Very Small Microfluidic Pump
  • Precision Self-Priming Dry-Running liquid/water Diaphragm/Membrane Dosing Light-weight Mini Metering Chemical Pump
  • Piezoelectric Low Power Conumption Liquid Low-Noise MicroPump & Filter (Fuel Cell / Metering Hyrdaulic Pump)
  • Mini Pump for Liquid Cooling / Water Fountain /Water Pressure Booster / Artificial Muscle Soft Robot
  • Smallest electronic pump for e-cigarettes / e-cigs / vapes (Custom designed Oil filling Liquid MicroPump)
Advantage of CurieJet® Micropump
  • Low power consumption
  • Small and thin-flat size
  • Light weight
  • Self priming
  • Bubble tolerance
  • Liquid Pump or Air Pump
  • Built-in or separated Driver board
  • Inlet/Outlet orientation options
  • Various DC Input version options
  • DC 5V/12V power input or AC 110V/220V
  • High performance/size ratio
  • Flexible to specify flow-rate value
Low power consumption
Small and thin-flat size
Light weight
Self priming
Material
  • Body:POM (can be replaced by PP or COC)
  • Rubber: EPDM ( can be replaced by NBR、IIR、FKM)
  • Diaphragm: 304 Stainless Steel
Liquid suggestion
  • DI water
  • lower alcohols
  • ketones
  • Alcohols
  • Liquid PH value between 3 to 9
  • We will find the suitable material for customer

Pump Guarantee Policy And Disclaimer

Pump Guarantee Policy And Disclaimer

About us

CurieJet® is the marketing brand of Microjet Technology’s Piezoelectric Micro Fluidics products. We have applied more than 1,600 patents worldwide on micropumps & related products. Mostly are invention patents. http://www.curiejet.com/en/about/
